Getting familiar with the Capture tray/Index tray
 Note
You cannot use a MICROMV
device with MovieShaker preinstalled on your computer. If you
wish to use a MICROMV device, see To
use a MICROMV device.

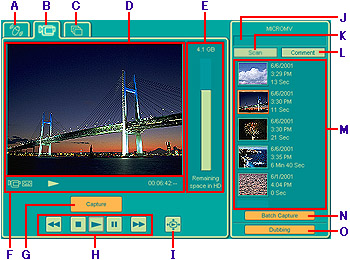

Capture tray
A Shake tab
Click this tab to display the Shake tray.
When you click the tab, it is highlighted, and the Shake tray appears.
Getting familiar with the Shake tray
B Capture tab
Click this tab to display the Capture tray.
When you click the tab, it is highlighted, and the Capture tray
appears. The Index tray appears only when "MICROMV Device"
is selected from the "Device" menu.
C Edit tab
Click this tab to display the Edit tray.
When you click the tab, it is highlighted, and the Edit tray appears.
Getting familiar with the Edit tray
D Monitor
The monitor is where you can view images being played back on a
MICROMV device.
E HDD remaining space indicator
This indicates the amount of space remaining on the hard disk to
which captured files are saved. If the remaining space becomes less
than 50 MB, this indicator turns red.
F Status indicator
This indicator displays the status of a MICROMV device (e.g., connected/disconnected,
with/without tapes, operating status), and the tape
counter.
G Capture button/Stop Capture button
Click this button to start/stop capturing.
H Play control buttons
These buttons control the MICROMV device connected to your computer.
: Rewinds the videotape.
: Stops the videotape.
: Starts playing the videotape.
: Pauses playing the videotape.
: Fast-forwards the videotape.
I Full screen preview monitor
Click this button to play back images on the Full screen monitor.
Index tray
J Cassette Label
Displays Cassette Labels entered by a MICROMV device.
K "Scan" button
Click this button to import and display the thumbnail
of images being played back on a MICROMV device.
L "Comment" button
Click this button to enter your comments, such as titles, for videotapes.
Note
The comments you entered are stored on your computer as information
about each videotape. These comments can only be displayed/edited on
the computer. Even when you delete all the contents on a videotape
with Cassette Memory, the comments will remain in your computer.
M Index palette
Displays a thumbnail image, time and date recorded, and recorded time
for each image on a MICROMV device.
N "Batch Capture" button
Select a thumbnail image(s) and click this button to capture the
image(s) from a MICROMV device and import it into the Clip tray.
O "Dubbing" button
Click this button to capture all images that have an index
contained on the videotape. They are simultaneously imported into the
Clip tray, and then arranged on the Product tray as scenes.
Related Topics
Capturing images from MICROMV devices
Settings for capturing from MICROMV devices
|
