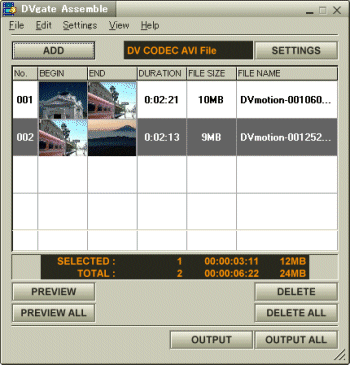

Main Window

Menu Bar: The menu in the Main Window lists the commands that you can use in this window.
Menu Bar

[ADD] Button: This button is used to add AVIs or still image files to the Assemble list.
File Format Display: Indicates the format of the file the edited video will be saved as.
[SETTINGS] Button: This button is used to open the dialog box for configuring the frame rate and other settings for saving the edited video as a file.
File Information Display: Shows the number of files listed in the Assemble list, their lengths and file sizes.
The upper row shows information on the selected file, while the lower row sums up the information on all the files contained in the Assemble list.
Assemble List: Shows information on the AVIs or still image files that are added to the list as source files for the to-be-combined file.
Arranging in Order the Files to be Spliced Together

[PREVIEW] Button: This button is used to preview the selected file in the Assemble list.
[PREVIEW ALL] Button: This button is used to preview all the files that are shown in the Assemble list.
[DELETE] Button: This button is used to delete a selected file from the Assemble list.
[DELETE ALL] Button: This button is used to delete all files from the Assemble list.
[OUTPUT] Button: This button is used to combine the selected files in the Assemble list and to output them as a single file.
[OUTPUT ALL] Button: This button is used to combine all the files in the Assemble list and to output them as a single file.
